UCC-310

   Previous    Next

Product Name UCC-310

Information

Input voltage:12-24V

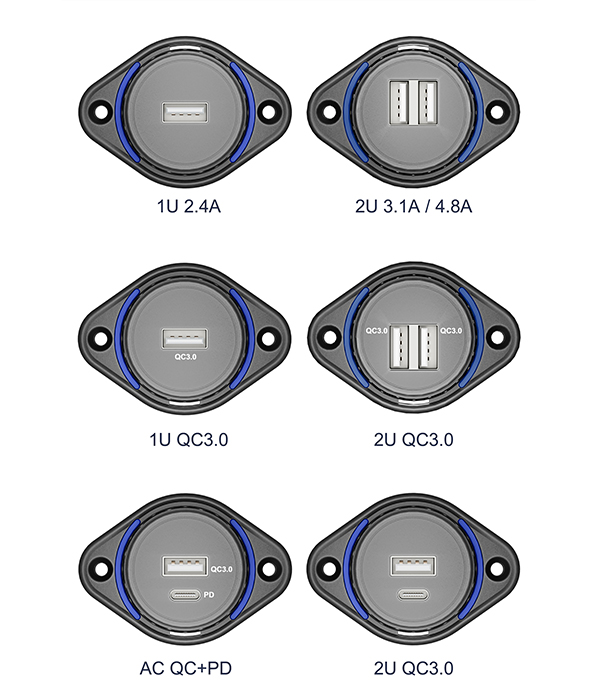

Optional specification:

1 USB 2.4A

1 USB QC3.0

2 USB 3.1A

2 USB 4.8A

2 USB QC3.0

USB+TYPE-C 3.1A

QC3.0+PD3.0

Weight:30g

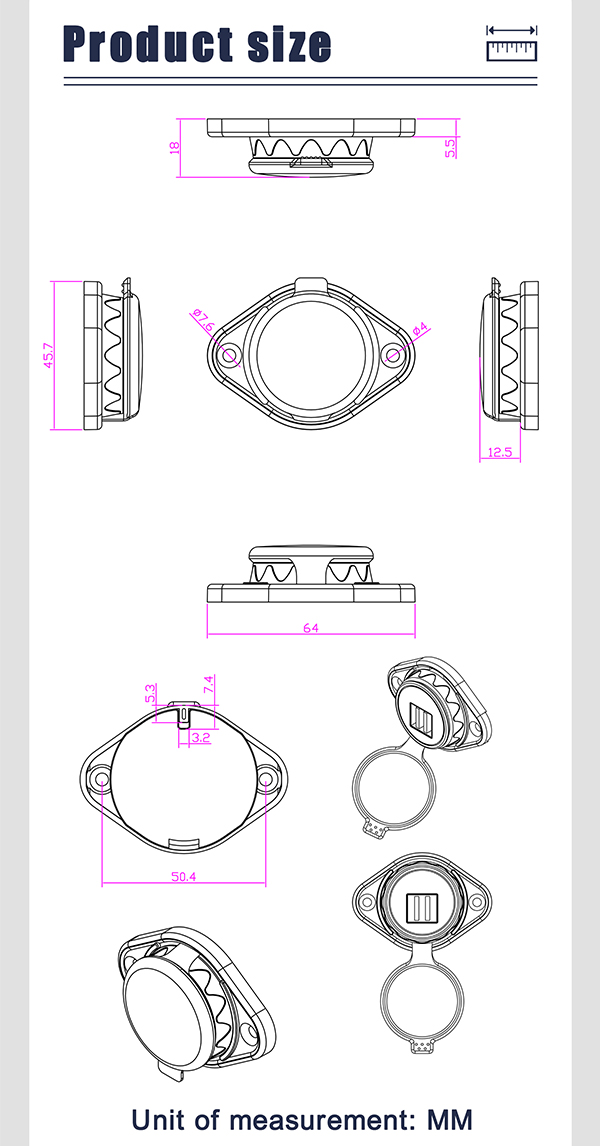

Dimension:64*45.7*18.2mm

Material: Nylon and fiber

Features:

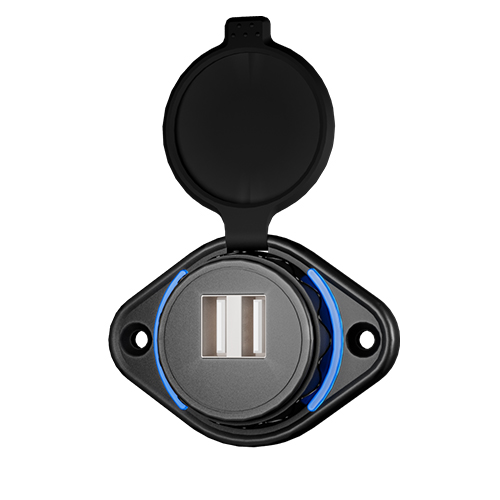

1. With PVC waterproof cover

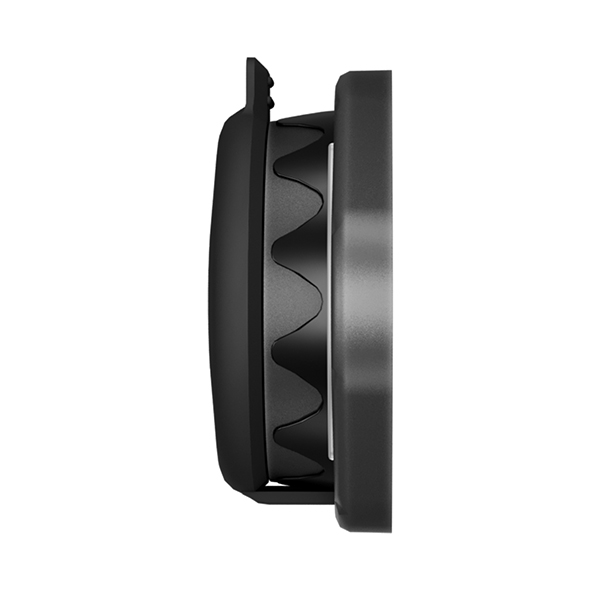

2. Flat back, easy to install and no need to drill large holes. The distance between two holes on the panel is 50.4mm

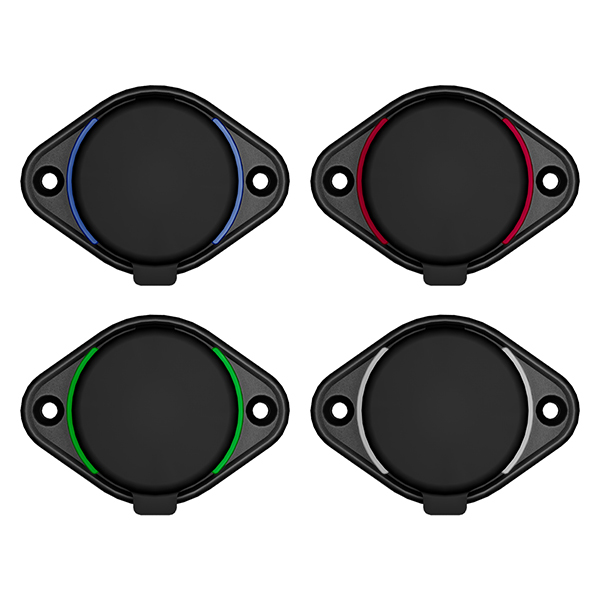

3. Blue/green/red/white four colors LED atmosphere light is optional, and the brightness can be reduced according to customer requirements for batch orders

4. Input 12-24V, widely used in automobiles, buses, RV, ships, etc

5. The default length is 13cm; Provide a variety of connector terminal welding services, such as Tyco, Molex, etc

6. Design Patent NumberZL 2018 3 0427471. X)
