UCC-309

   һ  Next

Product Name UCC-309

Information

Input voltage:12-24V

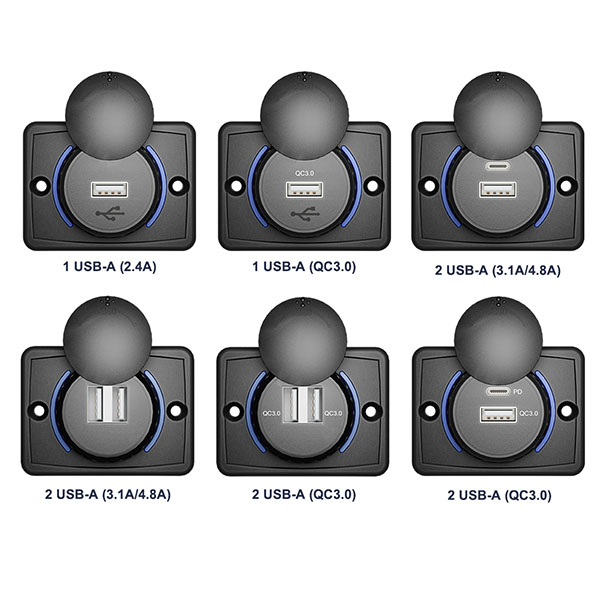

Optional specification:

1 USB 2.4A

1 USB QC3.0

2 USB 3.1A

2 USB 4.8A

2 USB QC3.0

USB+TYPE-C 3.1A

QC3.0+PD3.0

Weight:29g

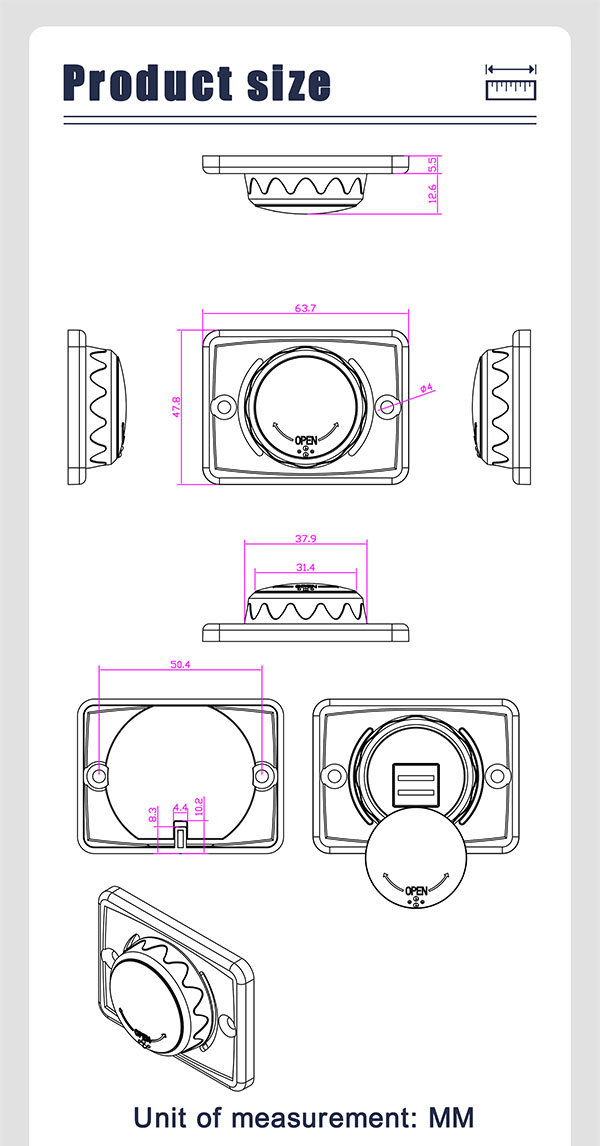

Dimension:64*47.8*18.1mm

Material: Nylon and fiber

Features:

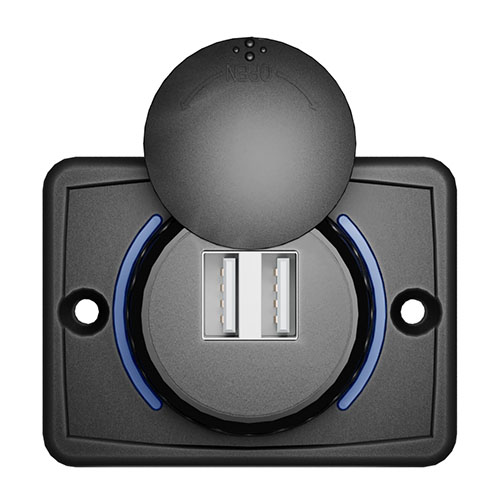

1. With 360 degree rotating waterproof cover

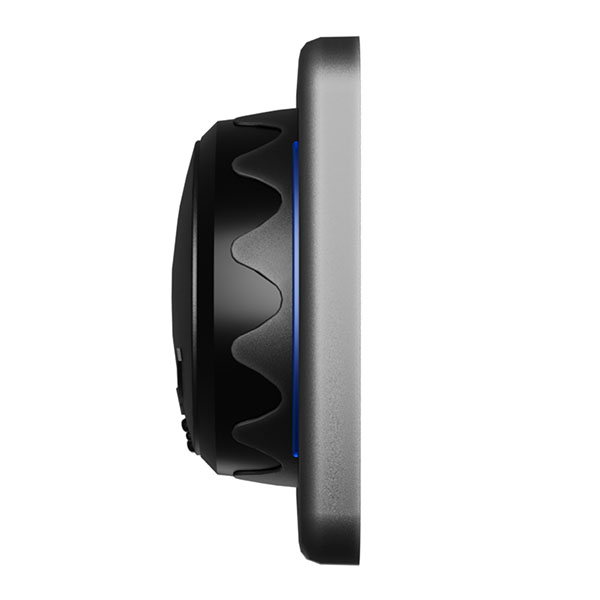

2. Flat back, easy to install and no need to drill large holes. The distance between two holes on the panel is 50.4mm

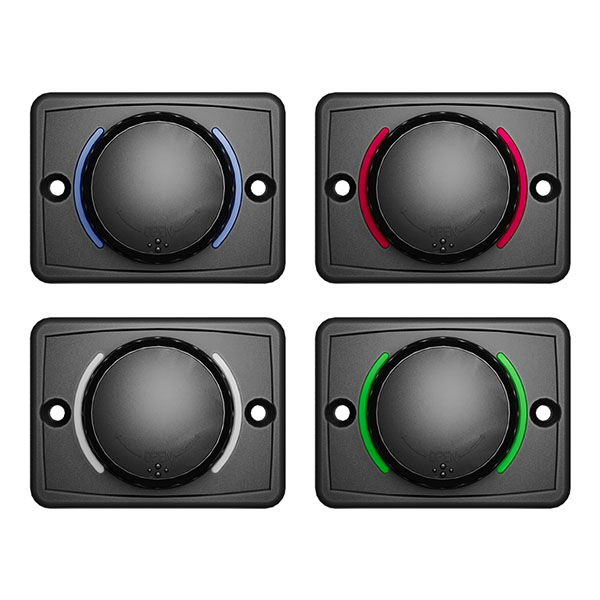

3. Blue/green/red/white four colors LED atmosphere light is optional, and the brightness can be reduced according to customer requirements for batch orders

3. Input 12-24V, widely used in automobiles, buses, RV, ships, etc

4. The default length is 13cm; Provide a variety of connector terminal welding services, such as Tyco, Molex, etc
